Quantitative gait and plantar-pressure assessment
OneScan
OneScan combines static plantar-pressure assessment and dynamic gait analysis on a dedicated piezoresistive sensor platform. Five platform lengths with 9,216–55,296 sensor contacts support clinical, rehabilitation, sports-science and research workflows.
- 01
- Five platform lengths
- 02
- 9,216–55,296 sensor contacts
- 03
- Static pressure & dynamic gait
Capabilities
What does the system measure and support?
- Static plantar-pressure and dynamic gait assessment
- High-density piezoresistive fence-type sensor matrix
- Readable analysis reports for clinical and training workflows
- Batch data import and export with open API interface
- External-device triggering and synchronization
- Optional integration with insole-customization data services

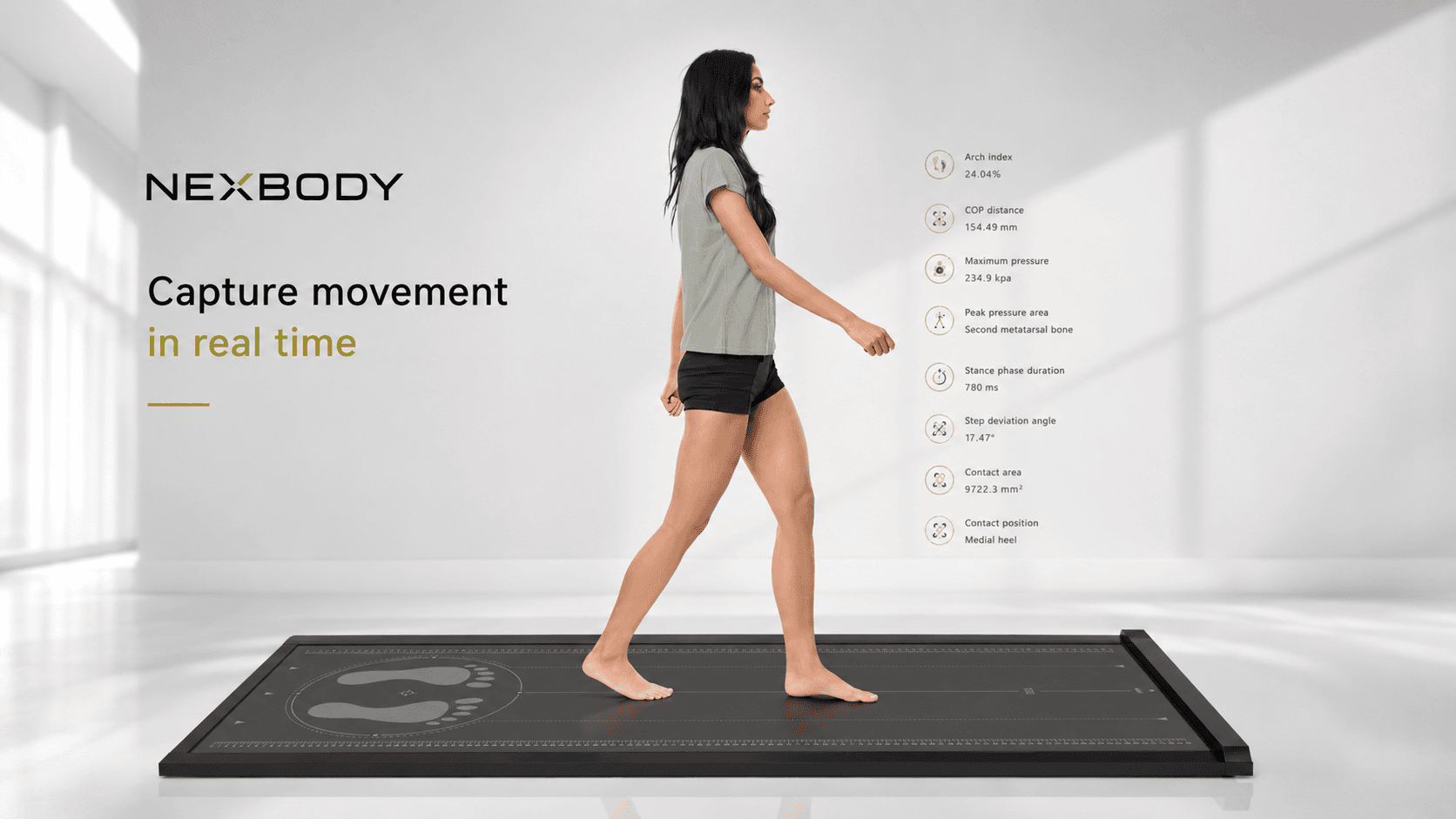

ONESCAN / GAIT IN MOTION
Pressure becomes
a movement record.
The dedicated walkway captures plantar-pressure distribution, center-of-pressure trajectory and timing through the gait cycle.
Specifications
Product configuration
- OneScan50
- 565 × 490 × 25 mm · 9,216 contacts
- OneScan120
- 1200 × 580 × 28 mm · 27,648 contacts
- OneScan160
- 1605 × 580 × 28 mm · 36,864 contacts
- OneScan200
- 2000 × 580 × 28 mm · 46,080 contacts
- OneScan240
- 2040 × 580 × 28 mm · 55,296 contacts
- Sensor type
- Piezoresistive fence sensor matrix
- Standard range
- >200 N/cm²
Outputs & applications
Made for professional review.
- Plantar-pressure distribution and center-of-pressure trajectory
- Stance phase and contact metrics
- Step timing, cadence and temporal and kinetic parameters
- Rehabilitation outcome comparison
- Sports injury and performance analysis
- Custom orthotic insole workflow support
Report types
Dynamic gait · Static plantar pressure · Temporal and kinetic parameters
Next step
See OneScan in the right workflow.
Book a focused product demonstration with the NEXBODY team.
Book a demo
