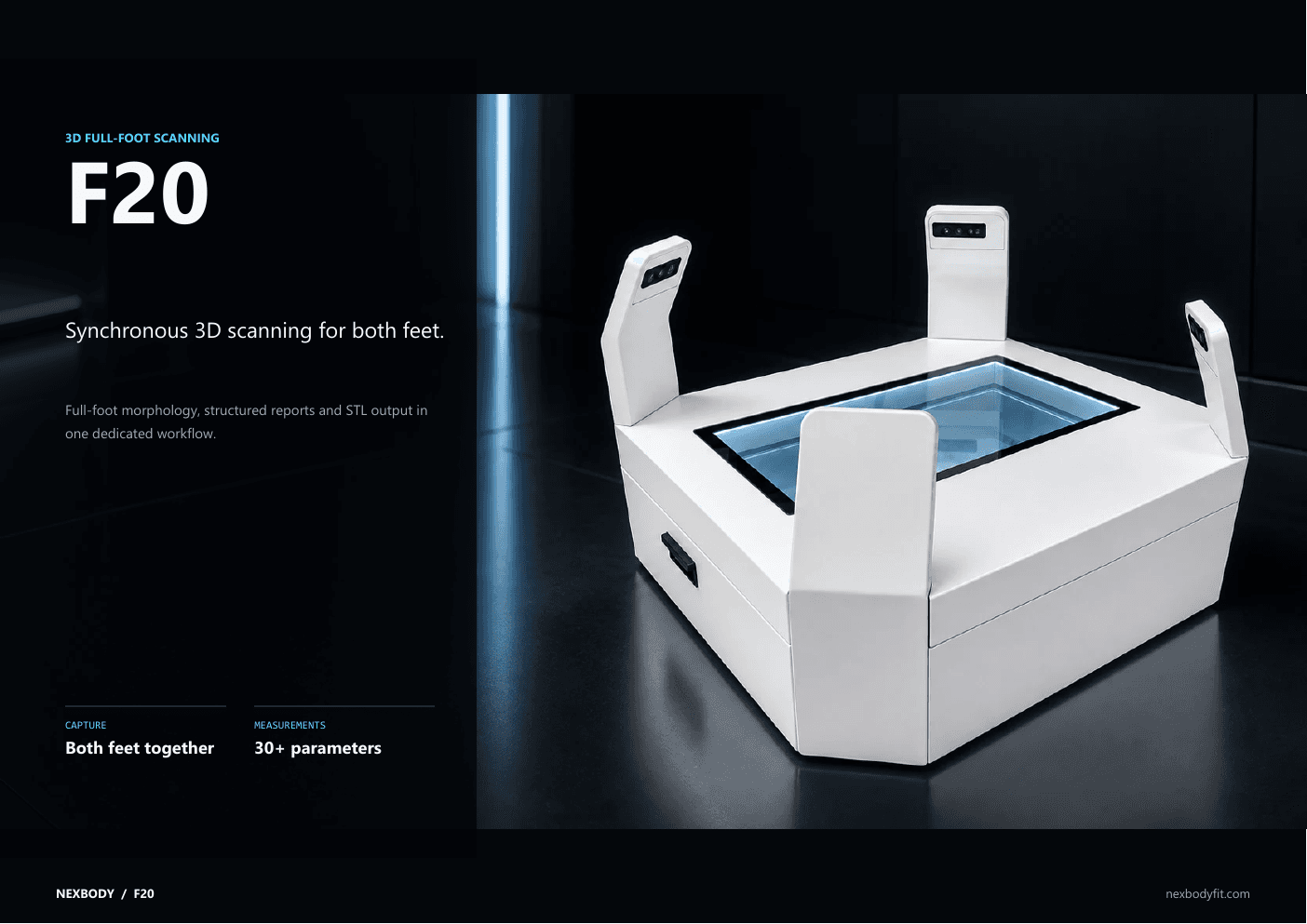

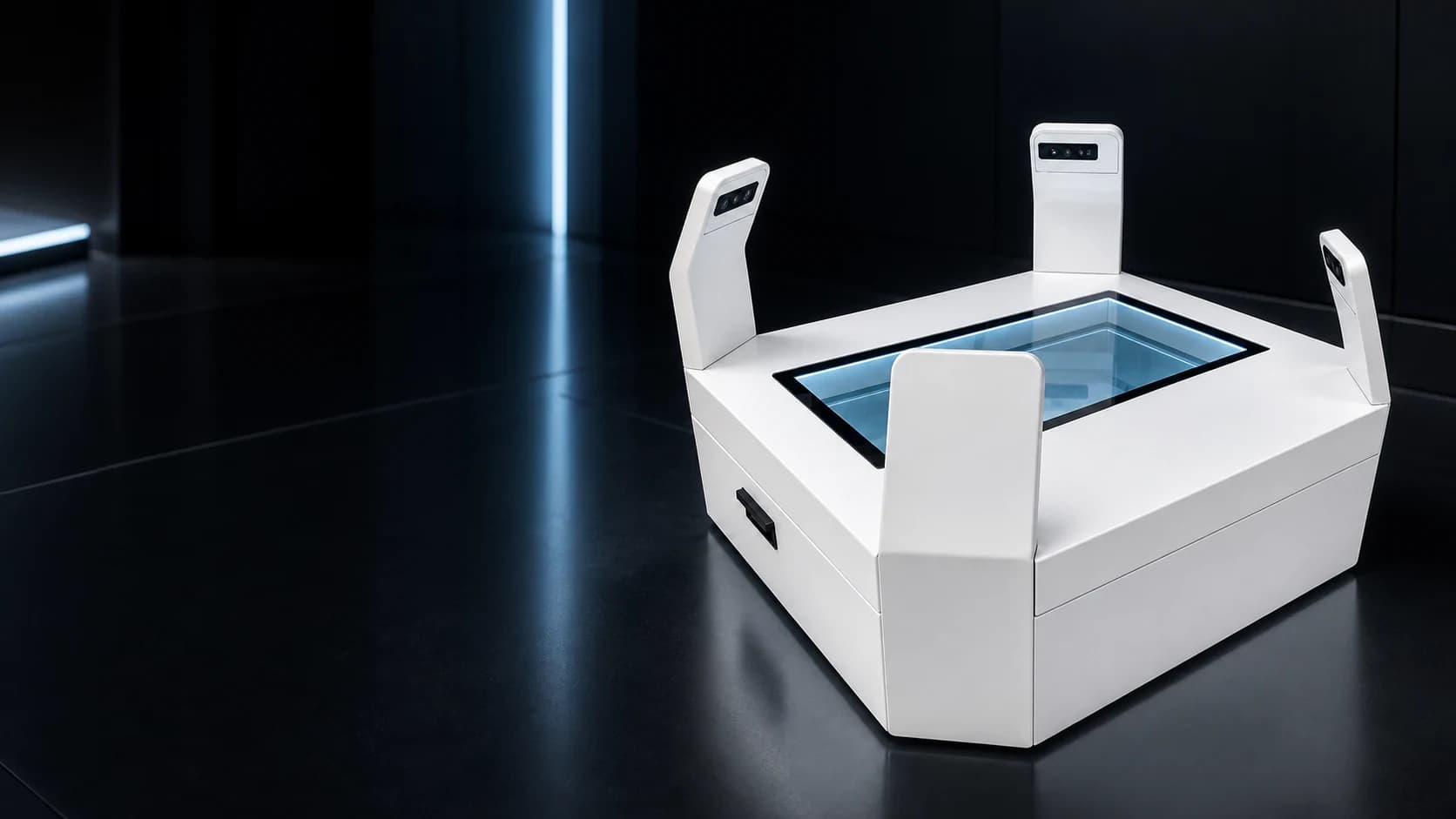

Synchronous 3D scanning for both feet
F20
F20 scans both feet together, bringing full-foot morphology, more than 30 measurements, AI arch-index classification and STL output into one dedicated workflow. Chinese and English interfaces support professional review, report comparison and printing.
- 01
- Both feet captured together
- 02
- 30+ full-foot parameters
- 03
- STL model output
Capabilities
What does the system measure and support?
- Synchronous 3D scanning of both feet
- More than 30 full-foot measurements including length, width and girth
- Hallux valgus and heel valgus angle assessment
- Arch-type identification based on AI arch index
- STL foot-model download, report comparison and printing
- Cloud or local deployment with import, export and interface services

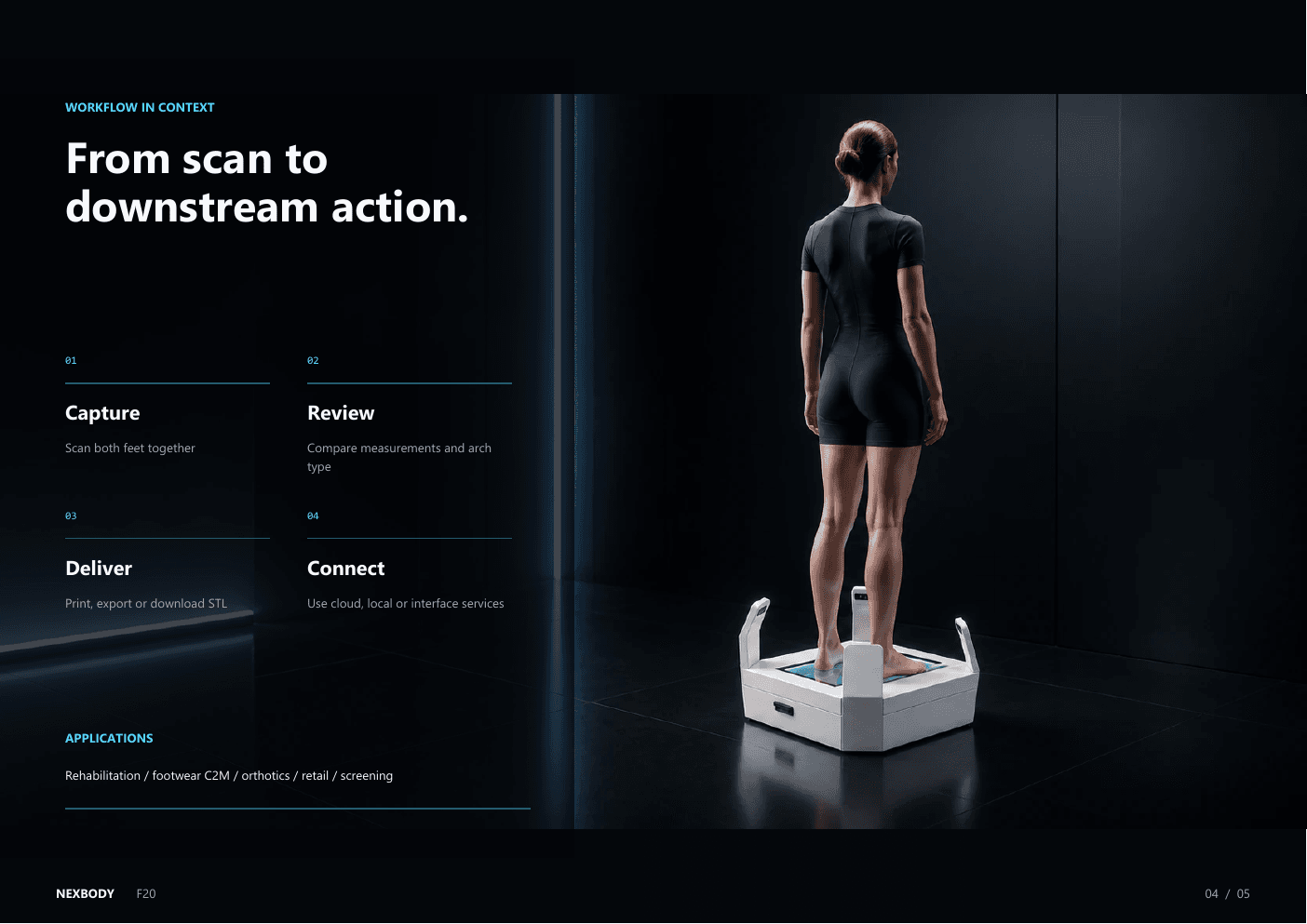

Workflow in context
From scan to
downstream action.

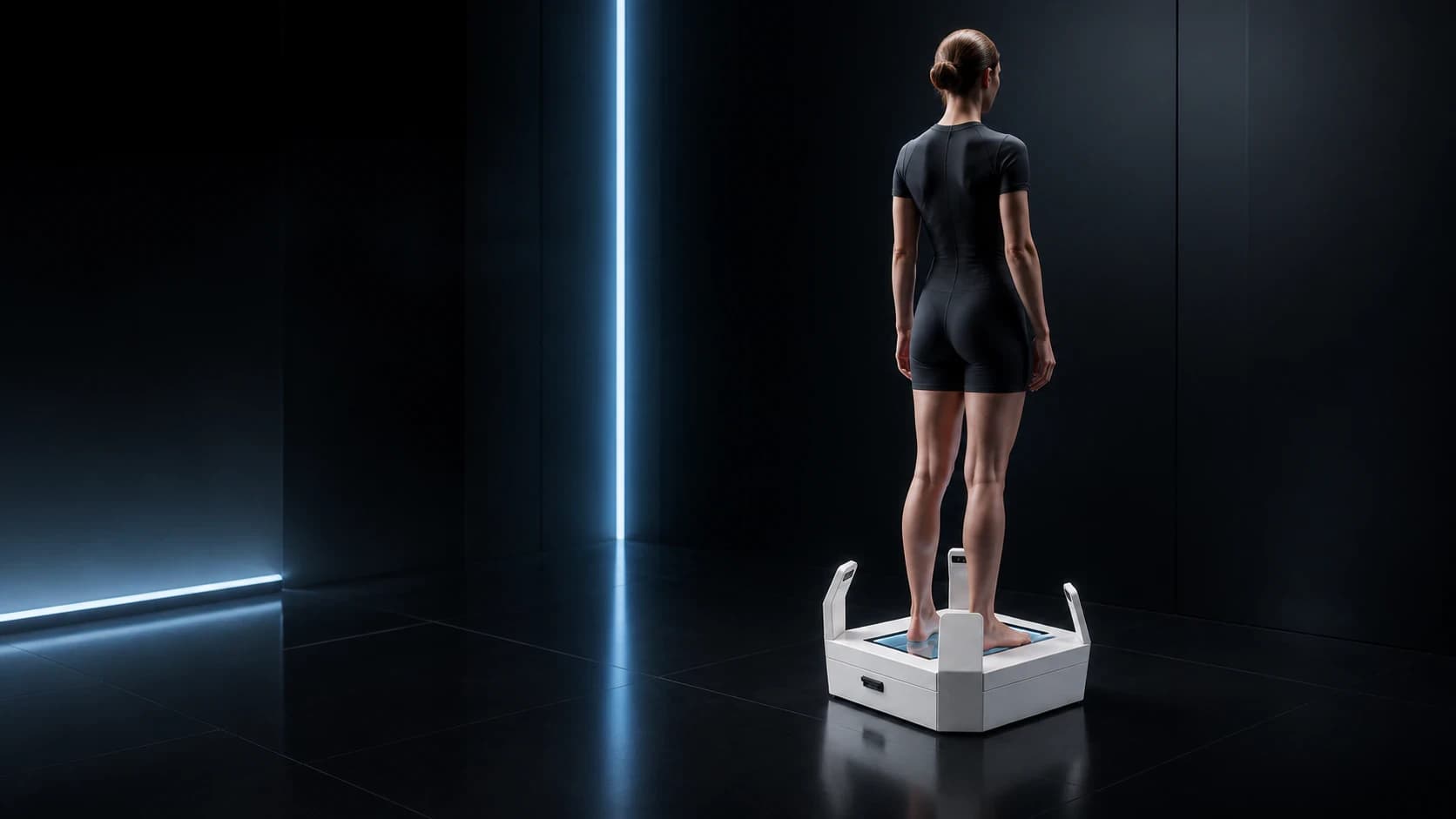

Capture both feet together, review full-foot geometry, then deliver reports or STL models into the next professional workflow.
Specifications
Product configuration
- Product
- F20 3D Full Foot Scanner for Both Feet
- Languages
- Chinese and English
- Measurements
- More than 30 full-foot parameters
- 3D output
- STL foot-model download
- Deployment
- Cloud computing or local deployment
- Data workflow
- Bulk import/export and interface docking supported
Outputs & applications
Made for professional review.
- Foot type and arch classification
- Foot length, width, girth and detailed regional dimensions
- Hallux valgus and heel valgus analysis
- Left/right comparison
- Report comparison and printing
- Custom development and research-data support
Report types
Foot type analysis · Full-foot measurements · Arch analysis
Next step
See F20 in the right workflow.
Book a focused product demonstration with the NEXBODY team.
